About the Pinball Machine
Eight Ball Deluxe is a classic solid-state pinball machine by Bally from 1981, designed by George Christian. With its timeless billiard theme, it is considered by connoisseurs to be one of the best early electronic pins ever made. The game features a challenging layout with numerous drop targets, inline drop targets for the bonus multiplier, and extremely cool early voice callouts like “Quit talking and start chalking!”.

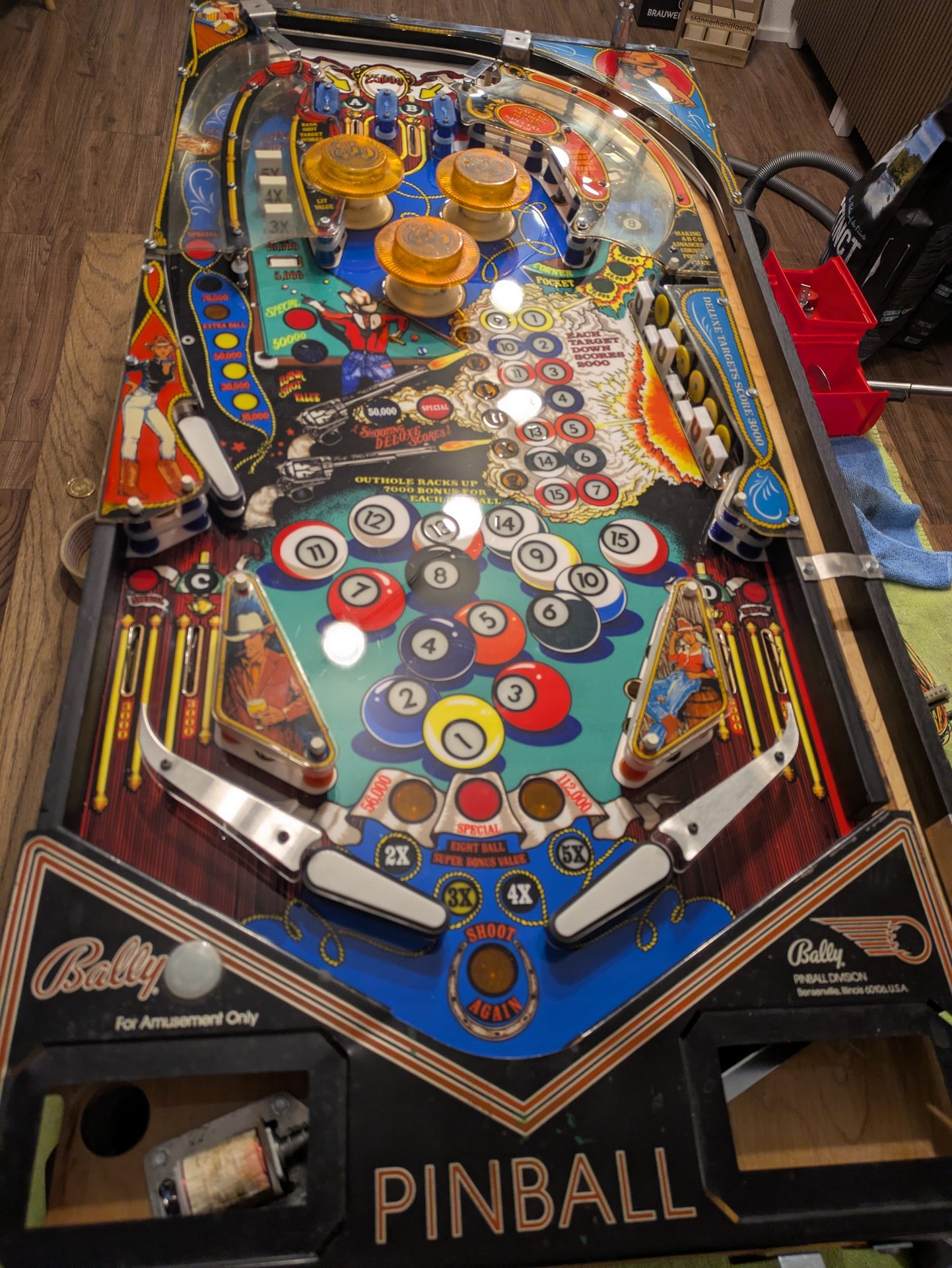

The finished playfield from above
Scope of Work
Playfield
- Complete teardown & cleaning of all parts (on top and under the playfield)
- Re-galvanizing of all metal parts (done by a professional shop, of course)
- New rubbers, new lamps (inserts, GI)
- Repair of a broken rollover switch, including touch-up with resin
- Replacement of all drop target plastics

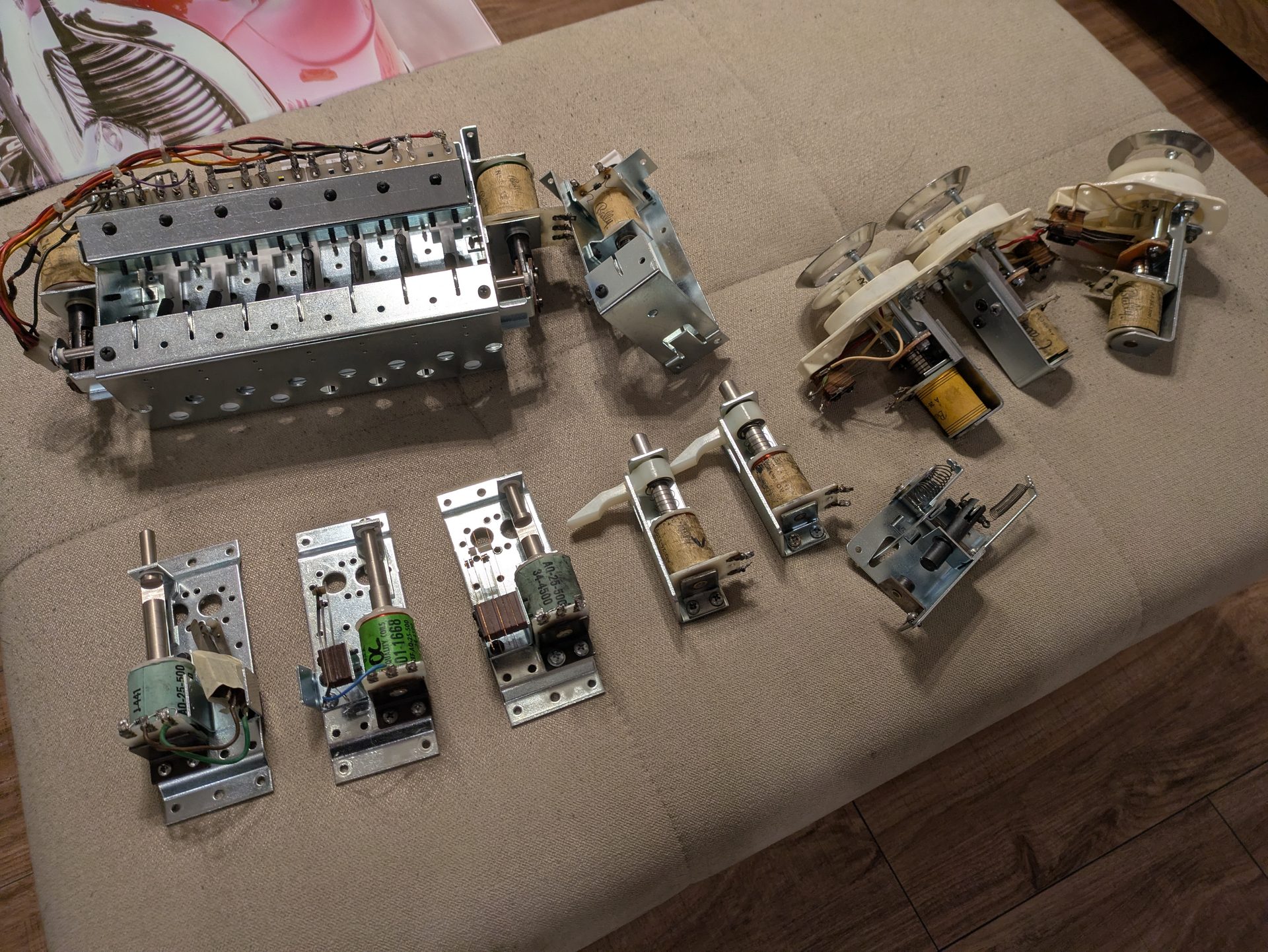

Newly galvanized metal parts

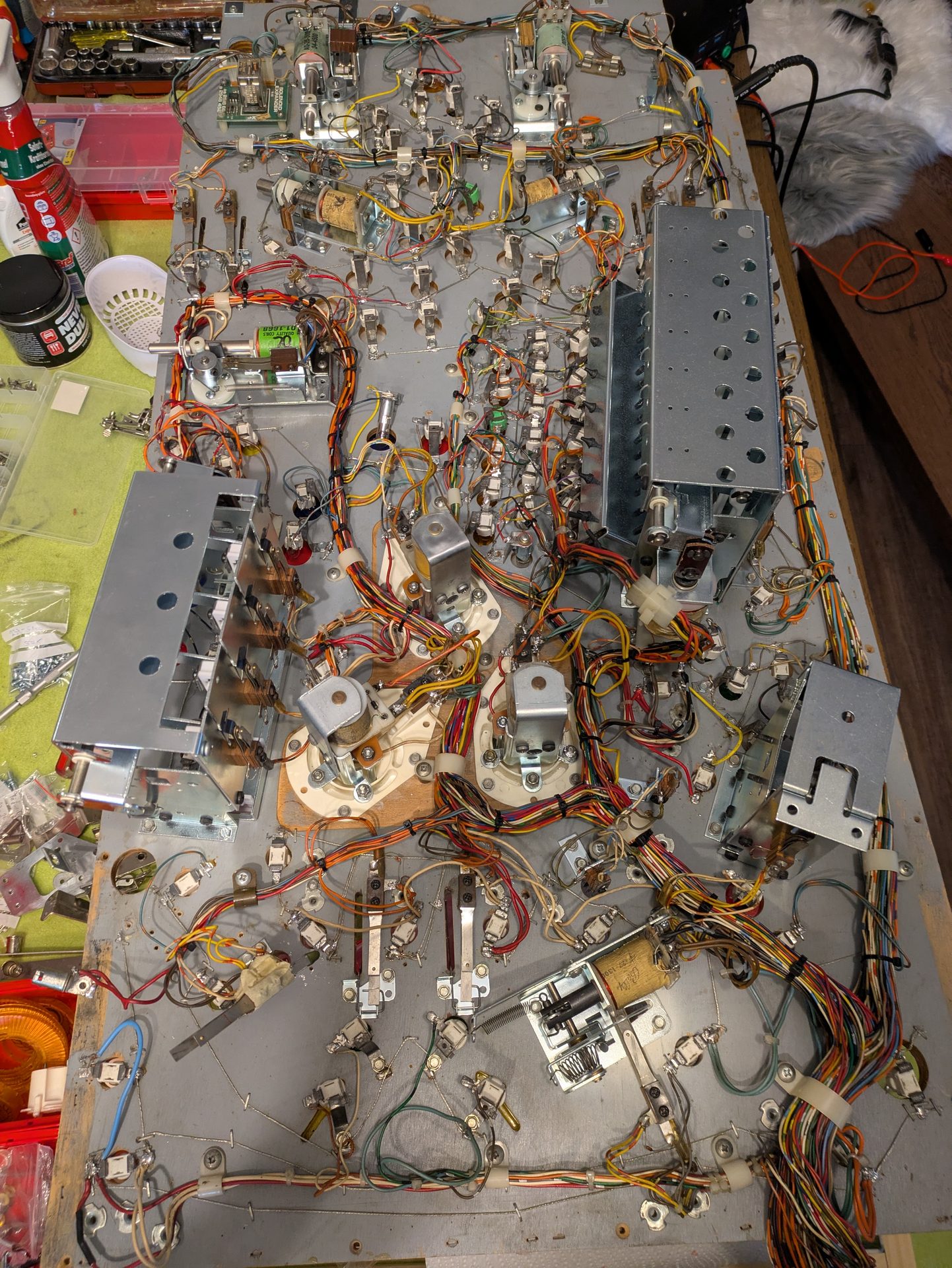

Under the playfield partially equipped with new parts

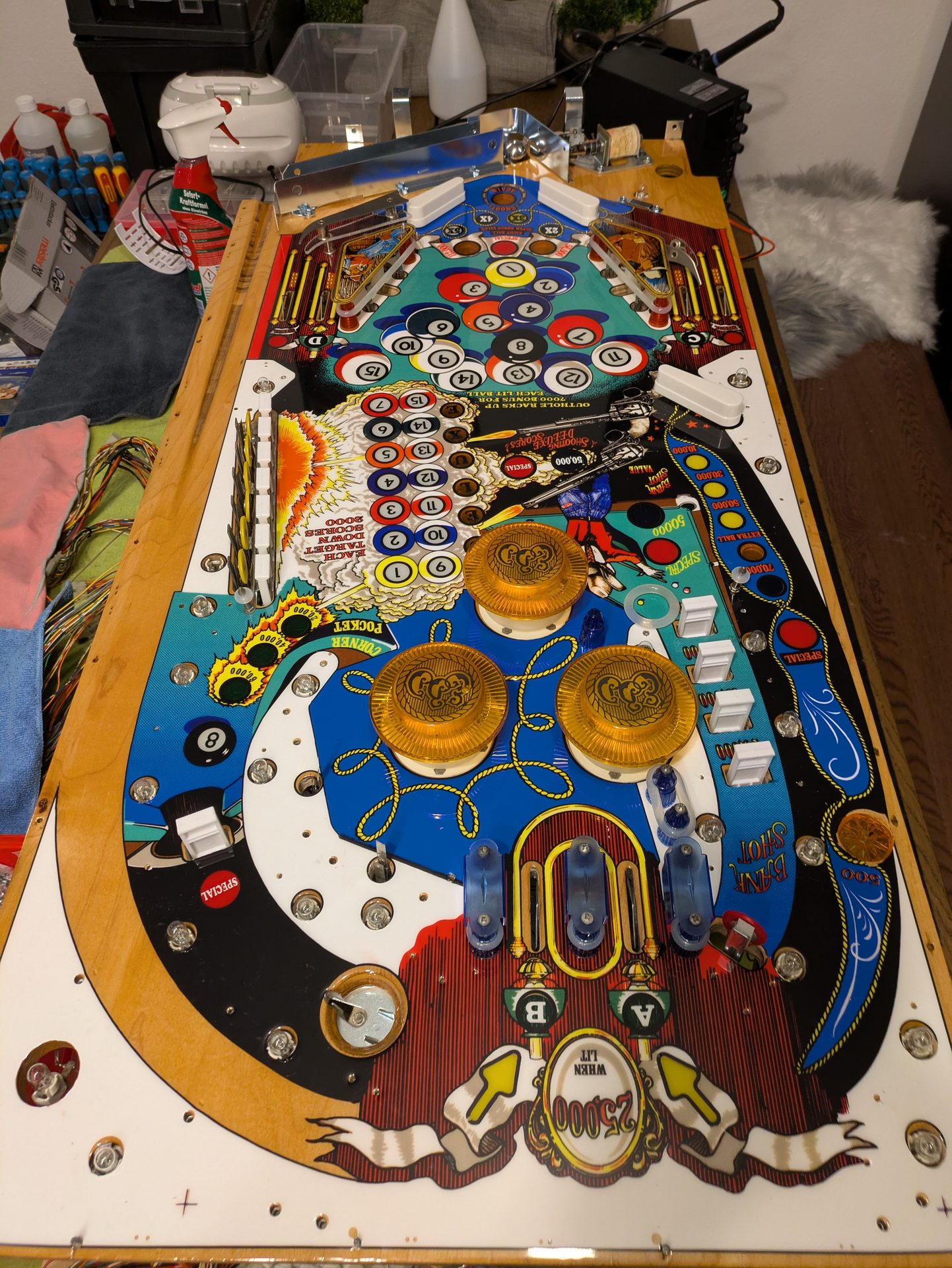

Partially assembled playfield
Electronics
- Full functional check of all cables and components
- Cleaning of all wiring harnesses
- Almost all solder joints redone and tested

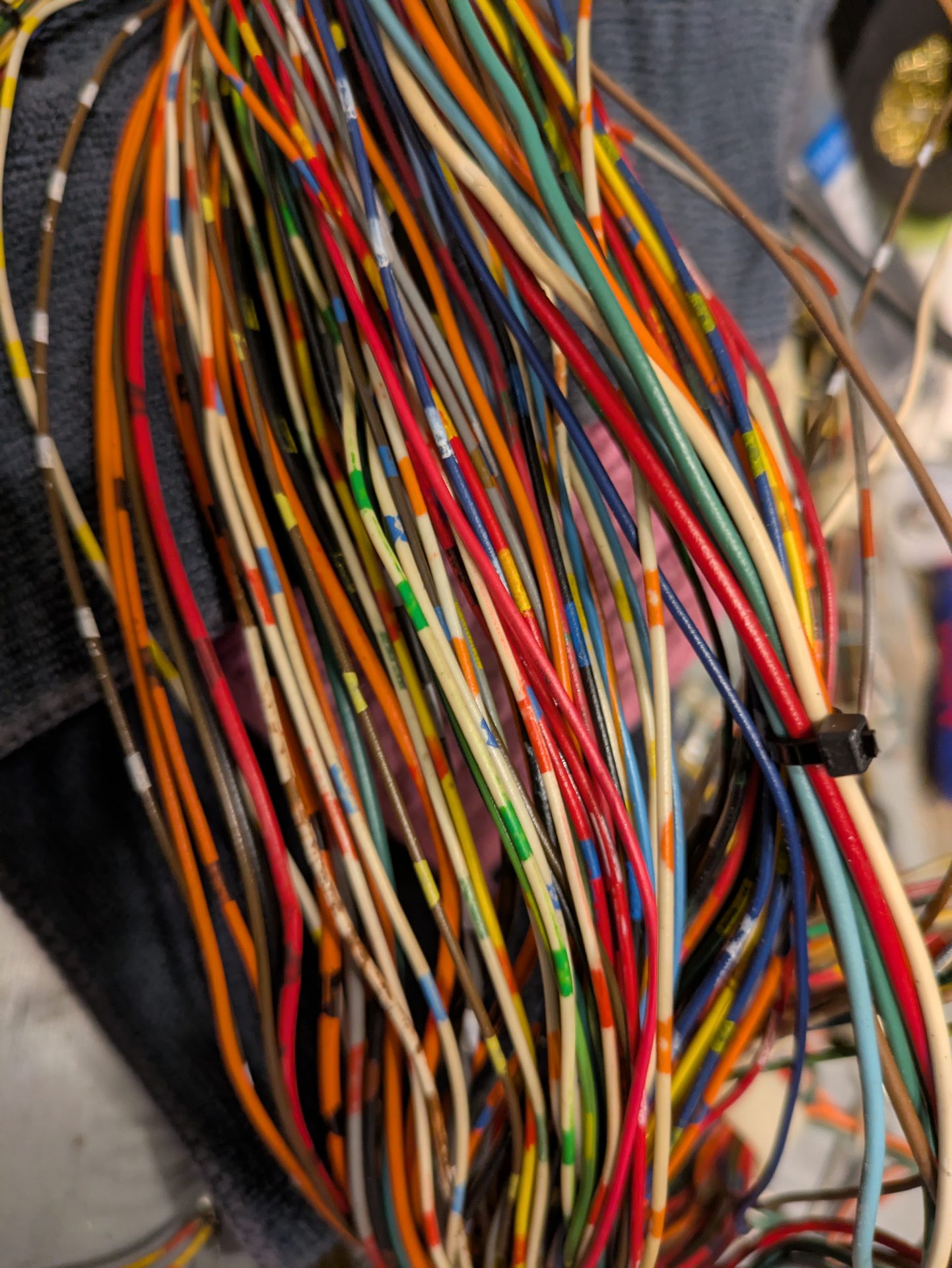

Cleaned wiring harness

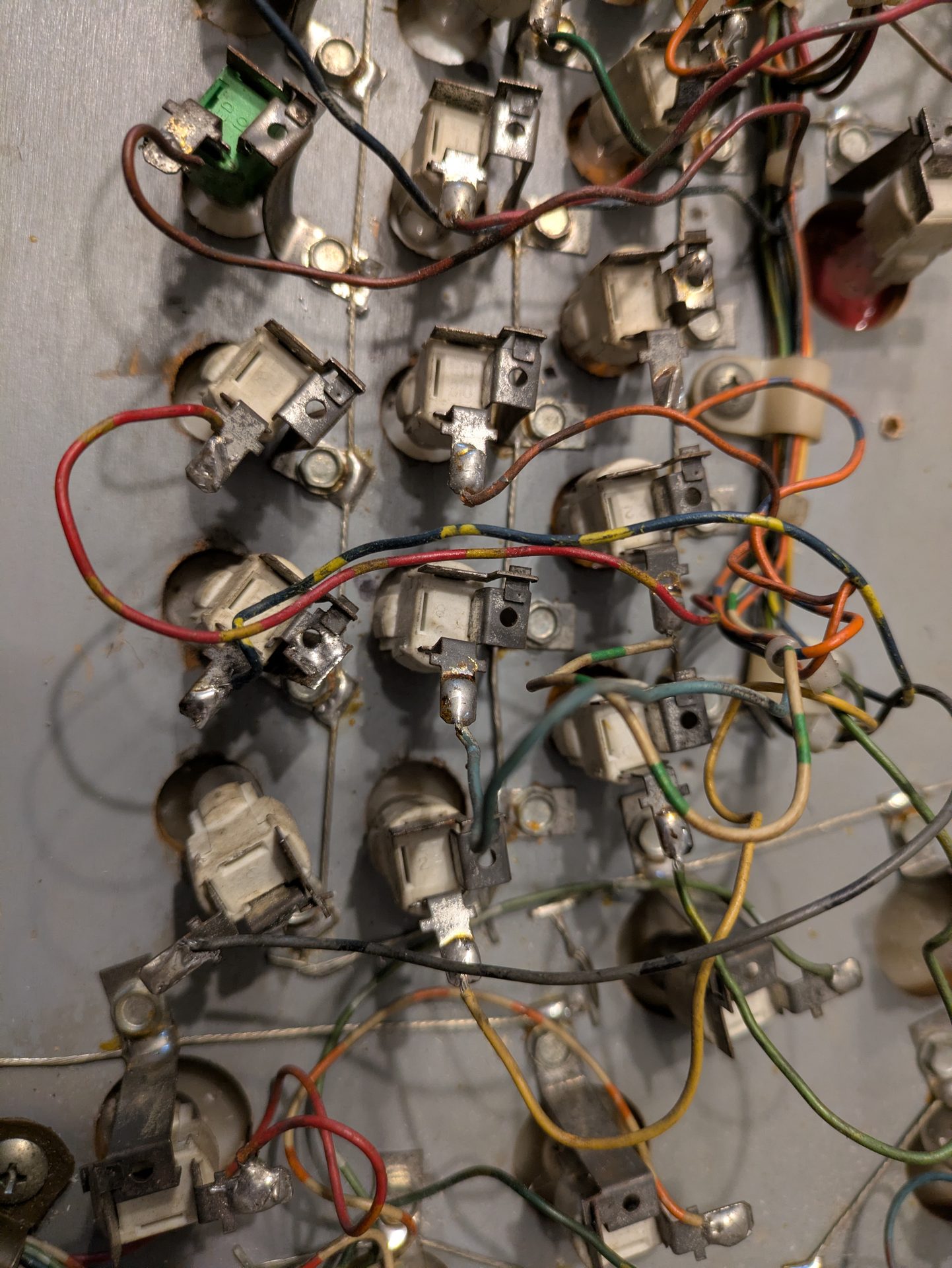

Insert lamp sockets before overhaul
Mechanics
- Both flippers completely overhauled except for the coils: new sleeves, plungers, links, coil stops, springs, and EOS switches
- Kicker and Slingshots: Cleaned and coil sleeves replaced
- Pop-Bumpers: New mechanical parts

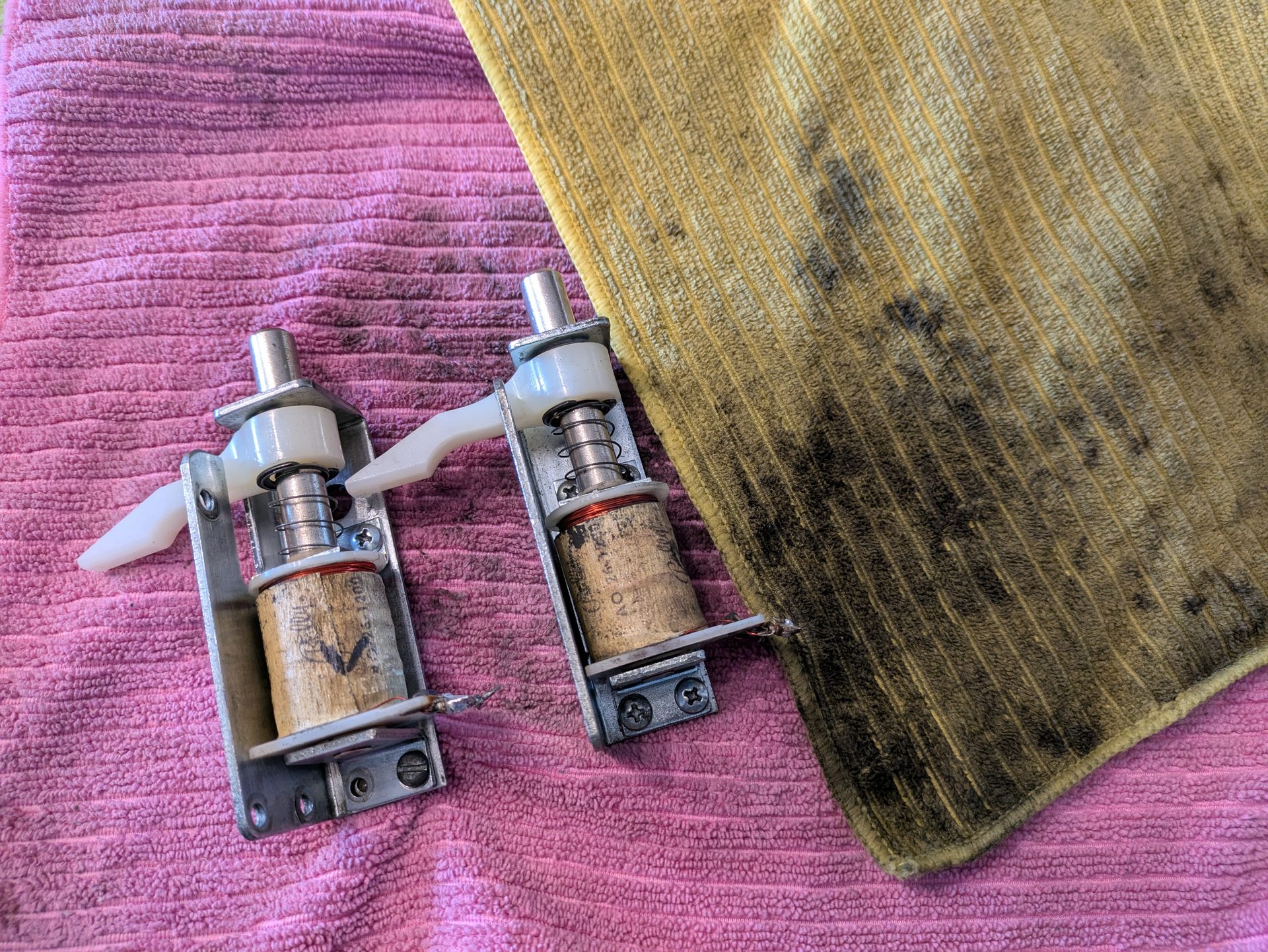

Slingshots after cleaning

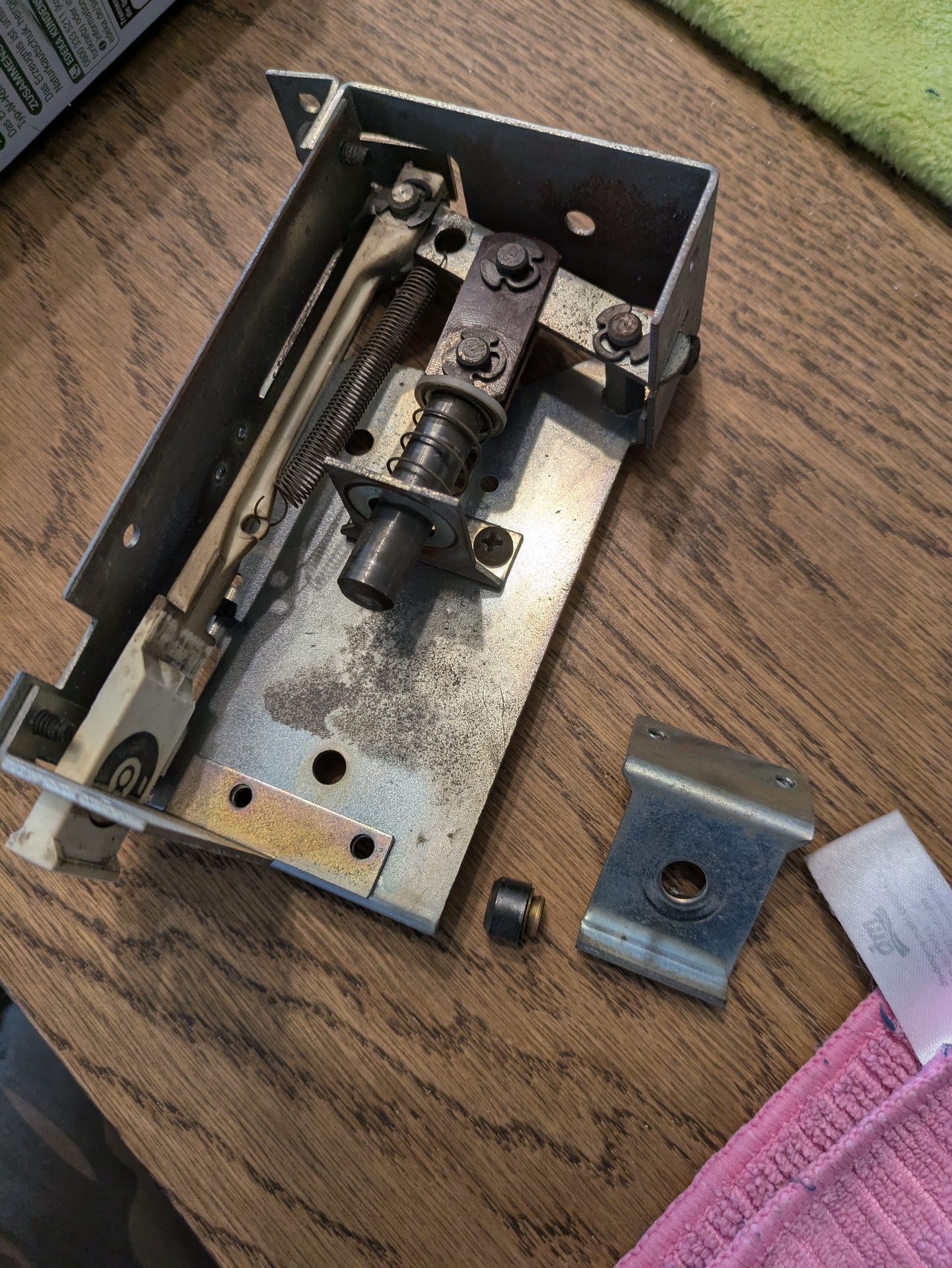

The single drop target bank before cleaning and re-galvanizing

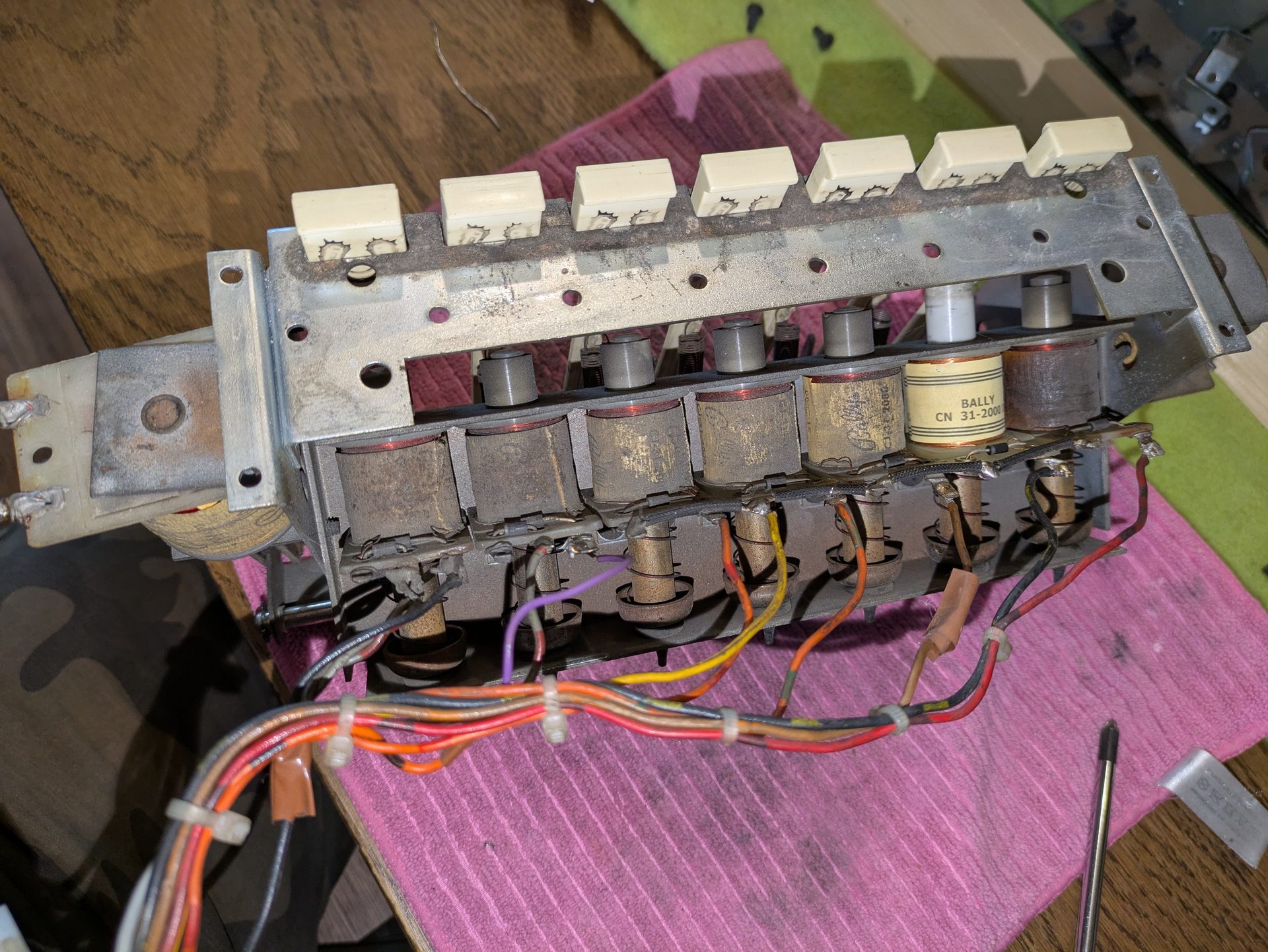

The 7-bank drop target assembly before cleaning and re-galvanizing
Miscellaneous
- Plastics “flattened” in the oven :P
- Wood structures partially repainted (black)
- Fixed various “hack jobs” involving metric screws, electrical tape, etc.
- Removed a massive amount of nicotine (GROSS)
Nicotine on the glove

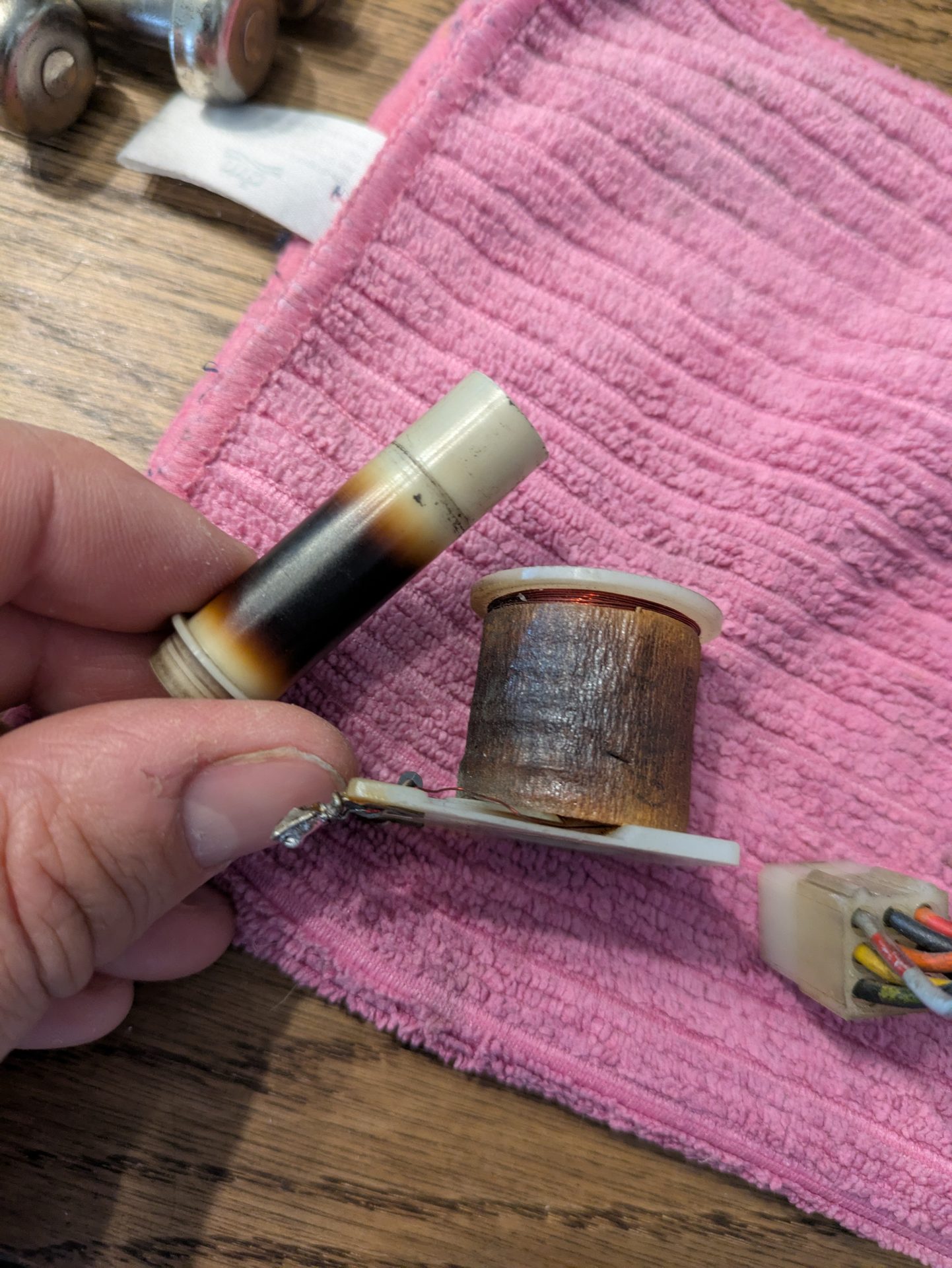

Burned-out coil from the 7-bank drop target assembly
Status
Completed. The playfield just needs to be reinstalled. The pinball machine will then be playable at the Pinball Museum Eschbach.
